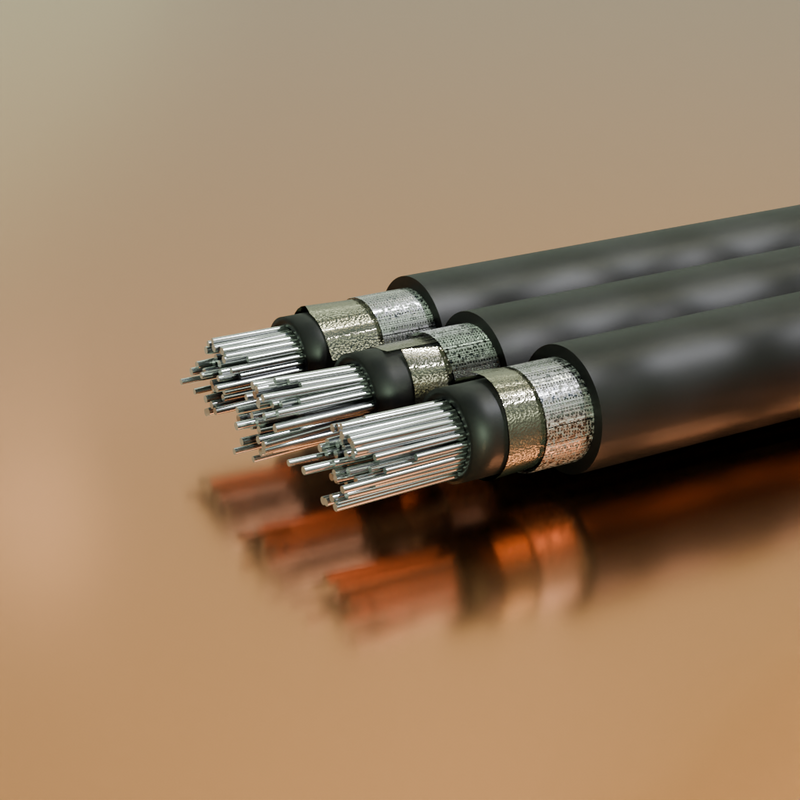

Chinses Standard RVVP Screened Wire

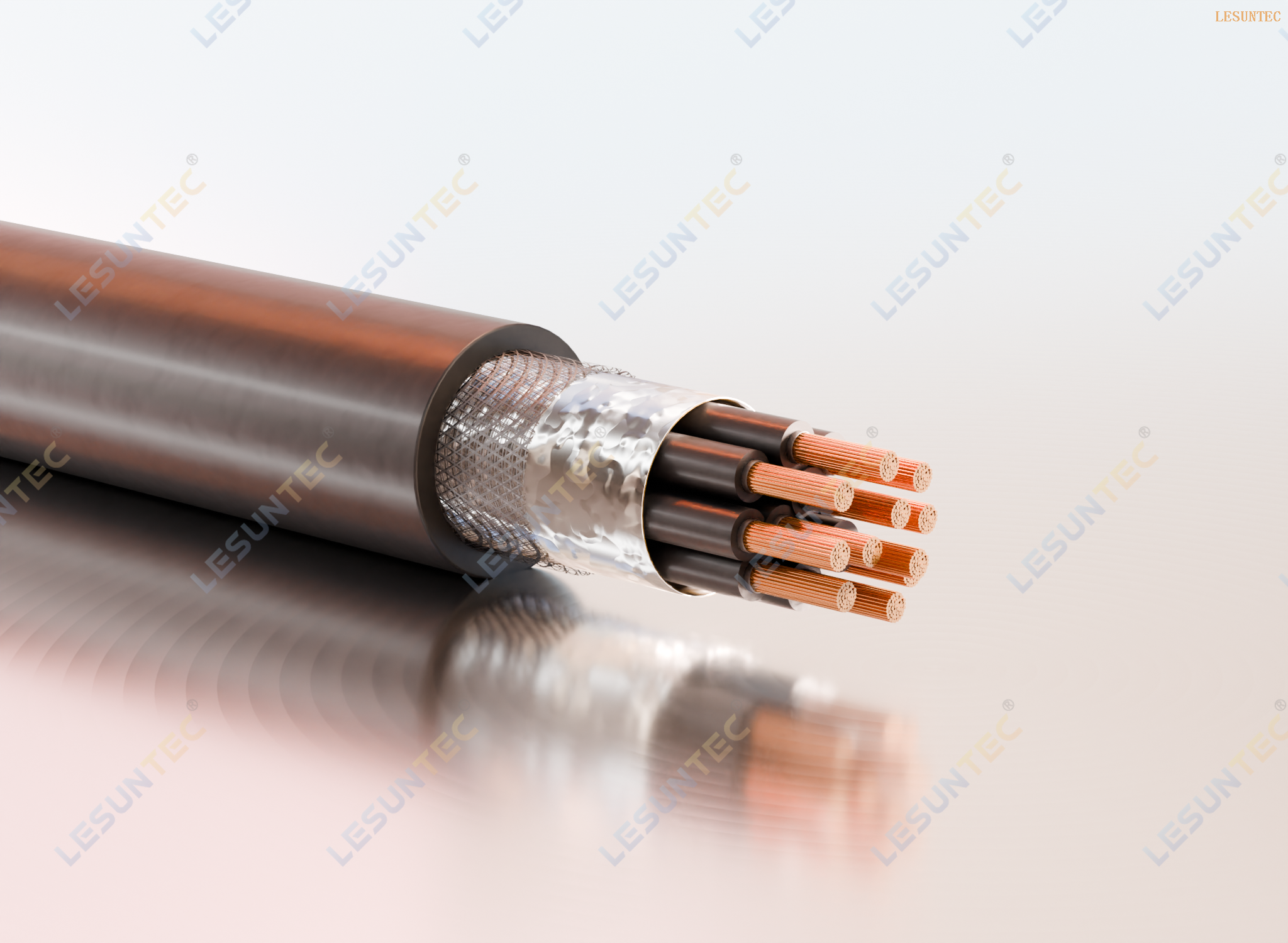

Type RVVP Screened Wire

standard: JB/T 8734.5-2016

Conductor section	(№ mm)	Stranding OD	Cores	Insulation thickness	Insulation OD	Jacket Thickness	Jacket OD	Max resistance/tinned	Max resistance/bare	Weight
0.12	7×0.15	0.46	1	0.4	1.3	0.4	2.6	163	158	2.93
0.12	7×0.15	0.46	2	0.4	1.3	0.4	4.35	163	158	17.02
0.12	7×0.15	0.46	3	0.4	1.3	0.6	4.55	163	158	19.01
0.12	7×0.15	0.46	4	0.4	1.3	0.4	4	163	158	12.28
0.12	7×0.15	0.46	5	0.4	1.3	0.6	4.55	163	158	11.39
0.12	7×0.15	0.46	6	0.4	1.3	0.6	4.55	163	158	10.53
0.12	7×0.15	0.46	7	0.4	1.3	0.6	4.55	163	158	7.8
0.12	7×0.15	0.46	10	0.4	1.27	0.6	6.9	163	158	27.34
0.12	7×0.15	0.46	12	0.4	1.3	0.6	8.15	163	158	46.35
0.2	12×0.15	0.6	2	0.4	1.43	0.6	5	95	92.3	24.01
0.2	12×0.15	0.6	3	0.4	1.43	0.6	5	95	92.3	24.5
0.2	12×0.15	0.6	4	0.4	1.43	0.6	5	95	92.3	26.44
0.2	12×0.15	0.6	5	0.4	1.43	0.6	5	95	92.3	13.82
0.2	12×0.15	0.6	6	0.4	1.43	0.6	5	95	92.3	12.86
0.2	12×0.15	0.6	7	0.4	1.43	0.6	5	95	92.3	9.84
0.3	16×0.15	0.69	1	0.5	1.73	0.6	3.05	71.2	69.2	5.64
0.3	16×0.15	0.69	2	0.5	1.73	0.6	5.8	71.2	69.2	31.13
0.3	16×0.15	0.69	3	0.5	1.73	0.6	5.7	71.2	69.2	30.58
0.3	16×0.15	0.69	4	0.5	1.73	0.6	5.8	71.2	69.2	29.77
0.3	16×0.15	0.69	5	0.5	1.73	0.6	5.7	71.2	69.2	15.21
0.3	16×0.15	0.69	6	0.5	1.73	0.6	5.8	71.2	69.2	14.27
0.3	16×0.15	0.69	7	0.5	1.73	0.6	6.4	71.2	69.2	19.48
0.5	28×0.15	0.92	1	0.5	1.95	0.6	4.9	40.1	39	8.13
0.5	28×0.15	0.92	2	0.5	1.95	0.6	6.7	40.1	39	44.12
0.5	28×0.15	0.92	3	0.5	1.95	0.6	6.35	40.1	39	41.12
0.5	28×0.15	0.92	4	0.5	1.95	0.6	6.7	40.1	39	45.79
1	32×0.15	0.98	3	0.6	2.54	0.8	8.8	20	19.5	72.8
0.75	42×0.15	1.12	2	0.6	2.16	0.6	7.8	26.7	26.6	64.98
0.75	42×0.15	1.12	3	0.6	2.16	0.6	7.8	26.7	26.6	68.54
0.75	42×0.15	1.12	4	0.6	2.16	0.6	7.8	26.7	26.6	68.2
1	32×0.2	1.31	2	0.6	2.54	0.6	7.8	20	19.5	60.67
1	32×0.2	1.31	4	0.6	2.54	0.6	7.8	20	19.5	65.5
1.5	48×0.2	1.6	3	0.6	2.9	0.8	8.8	13.7	13.3	88.75
