Japanese Standard AVSS/AVS

Availability:

Quantity:



Inquire Add to Basket

Product Description

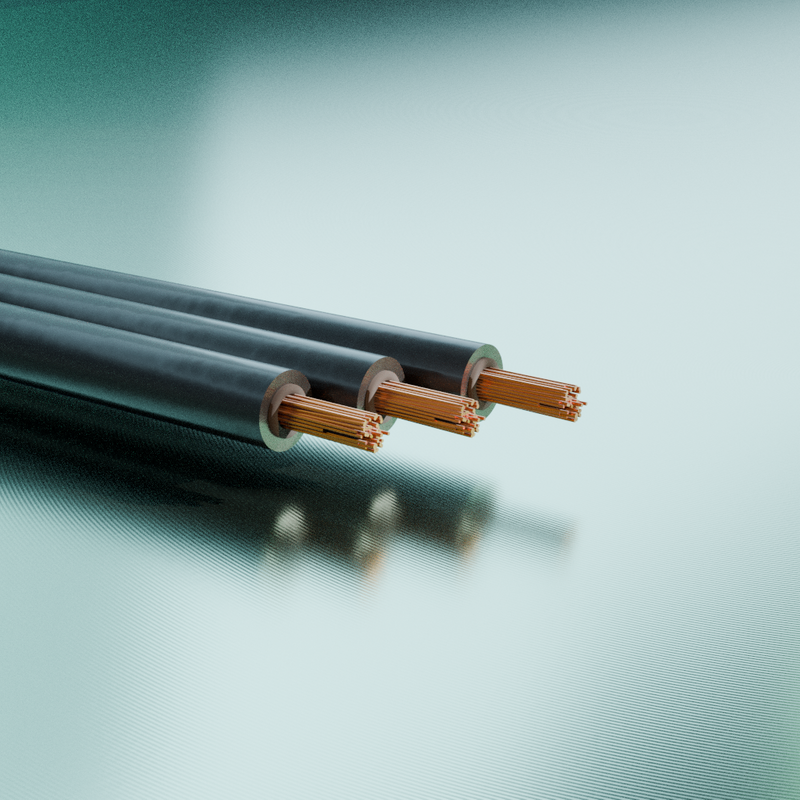

AV PVC Insulated Wire Series

standard: JIS C 3406

Rated Voltage 60V
Rated Temperature 105℃
PVC Rated Temperature
Standard thickness, easy to peel and cut
Resistant to acid and alkali, oil, mould and mildew, also eco-friendly

Conductor section	(№ mm)	Stranding OD	Insulation thickness	Insulation OD	Max resistance/bare	Weight
0.3	7×0.26	0.79	0.5	1.9	50.2	7.02
0.3	7×0.26	0.79	0.3	1.5	50.2	5.37
0.3f	15×0.18	0.81	0.5	1.9	48.9	7.09
0.3f	19×0.16	0.81	0.3	1.5	48.8	5.44
0.5f	20×0.18	0.93	0.6	2.4	36.7	10.6
0.5f	20×0.18	0.93	0.5	2.1	36.7	8.96
0.50	20×0.18	0.93	0.5	2.2	36.7	9.48
0.5f	19×0.19	0.96	0.3	1.7	34.6	7.33
0.5	7×0.32	0.98	0.6	2.4	32.7	10.98
0.5	7×0.32	0.98	0.6	2.4	32.7	10.98
0.5	7×0.32	0.98	0.3	1.7	32.7	7.5
0.5	7×0.32	0.98	0.5	2.2	32.7	9.87
0.75	30×0.18	1.14	0.6	2.6	24.4	13.62
0.75	30×0.18	1.14	0.5	2.3	24.4	11.84
0.75	30×0.18	1.14	0.5	2.4	24.4	12.41
0.75	19×0.23	1.16	0.3	1.9	23.6	9.98
0.85	19×0.24	1.21	0.3	1.9	21.7	10.48
0.85	11×0.32	1.23	0.6	2.6	20.8	14.48
0.85	11×0.32	1.23	0.6	2.6	20.8	14.48
0.85	11×0.32	1.23	0.5	2.4	20.8	13.27
1.25	19×0.29	1.46	0.3	2.2	14.9	14.78
1.25	50×0.18	1.47	0.6	2.9	14.7	19.23
1.25	50×0.18	1.47	0.5	2.6	14.7	17.23
1.25	50×0.18	1.47	0.6	2.9	14.7	19.23
1.25	37×0.21	1.48	0.3	2.2	14.6	14.97
1.25	16×0.32	1.48	0.6	2.9	14.3	19.34
1.25	16×0.32	1.48	0.6	2.9	14.3	19.34
1.25	16×0.32	1.48	0.6	2.9	14.3	19.34
2f	37×0.26	1.83	0.6	3.4	9.5	27.97
2f	37×0.26	1.83	0.5	3.1	9.5	25.6
2f	37×0.26	1.83	0.4	2.7	9.5	22.78
2	26×0.32	1.88	0.6	3.4	8.81	28.86
2	26×0.32	1.88	0.6	3.4	8.81	28.86
2	26×0.32	1.88	0.6	3.4	8.8	28.86
3f	61×0.26	2.35	0.7	4.1	5.76	43.38
3	41×0.32	2.37	0.7	4.1	5.59	43.8
3	41×0.32	2.37	0.7	3.9	5.59	41.85
3	41×0.32	2.37	0.7	4.1	5.6	43.8
5	65×0.32	2.98	0.8	4.9	3.52	66.23
5	65×0.32	2.98	0.8	4.9	3.52	66.23
5	65×0.32	2.98	0.8	4.9	3.5	66.23
8	50×0.45	3.68	0.9	5.8	2.32	97.25
8	50×0.45	3.68	0.8	5.6	2.3	94.48
10	63×0.45	4.13	1	6.9	1.84	128.87
15	84×0.45	4.76	1.1	7.4	1.38	161.24
15	84×0.45	4.76	1.1	7.4	1.4	161.24
20	41×0.8	5.92	1.1	8.8	0.89	240.2
30	70×0.8	7.73	1.4	11.5	0.52	410.14
40	85×0.8	8.52	1.4	12.1	0.43	480.83
50	108×0.8	9.6	1.6	13.8	0.34	616.29
60	127×0.8	10.41	1.6	14.4	0.29	704.59
85	169×0.8	12.01	2	17	0.22	953.45
100	217×0.8	13.61	2	18.6	0.17	1,193.77

AVS Slim Type PVC Insulated Wire

standard: JASO D 611-94

Rated Voltage 60V
Rated Temperature 105℃
PVC Rated Temperature
Standard thickness, easy to peel and cut
Resistant to acid and alkali, oil, mould and mildew, also eco-friendly

Conductor section	(№ mm)	Stranding OD	Insulation thickness	Insulation OD	Max resistance/bare	Weight
0.3	7×0.26	0.79	0.5	1.9	50.2	7.02
0.3	7×0.26	0.79	0.3	1.5	50.2	5.37
0.3f	15×0.18	0.81	0.5	1.9	48.9	7.09
0.3f	19×0.16	0.81	0.3	1.5	48.8	5.44
0.5f	20×0.18	0.93	0.5	2.1	36.7	8.96
0.5f	19×0.19	0.96	0.3	1.7	34.6	7.33
0.5	7×0.32	0.98	0.6	2.4	32.7	10.98
0.5	7×0.32	0.98	0.3	1.7	32.7	7.5
0.75	30×0.18	1.14	0.5	2.3	24.4	11.84
0.75	19×0.23	1.16	0.3	1.9	23.6	9.98
0.85	19×0.24	1.21	0.3	1.9	21.7	10.48
0.85	11×0.32	1.23	0.6	2.6	20.8	14.48
1.25	19×0.29	1.46	0.3	2.2	14.9	14.78
1.25	50×0.18	1.47	0.5	2.6	14.7	17.23
1.25	37×0.21	1.48	0.3	2.2	14.6	14.97
1.25	16×0.32	1.48	0.6	2.9	14.3	19.34
2f	37×0.26	1.83	0.5	3.1	9.5	25.6
2f	37×0.26	1.83	0.4	2.7	9.5	22.78
2	26×0.32	1.88	0.6	3.4	8.81	28.86
3	41×0.32	2.37	0.7	3.9	5.59	41.85
5	65×0.32	2.98	0.8	4.9	3.52	66.23

AVSS Super Slim Type PVC Insulated Wire

standard: JASO D 611-94

Rated Voltage 60V
Rated Temperature 105℃
PVC Rated Temperature
Standard thickness, easy to peel and cut
Resistant to acid and alkali, oil, mould and mildew, also eco-friendly

Conductor section (mm²)	(№ mm)	Stranding OD (mm)	Insulation thickness (mm)	Insulation OD (mm)	Max resistance/bare 20℃(Ω/km)	Weight (kg/km)
0.3	7×0.26	0.79	0.3	1.5	50.2	5.37
0.3f	19×0.16	0.81	0.3	1.5	48.8	5.44
0.5f	19×0.19	0.96	0.3	1.7	34.6	7.33
0.5	7×0.32	0.98	0.3	1.7	32.7	7.5
0.75	19×0.23	1.16	0.3	1.9	23.6	9.98
0.85	19×0.24	1.21	0.3	1.9	21.7	10.48
1.25	19×0.29	1.46	0.3	2.2	14.9	14.78
1.25	37×0.21	1.48	0.3	2.2	14.6	14.97
2f	37×0.26	1.83	0.4	2.7	9.5	22.78
