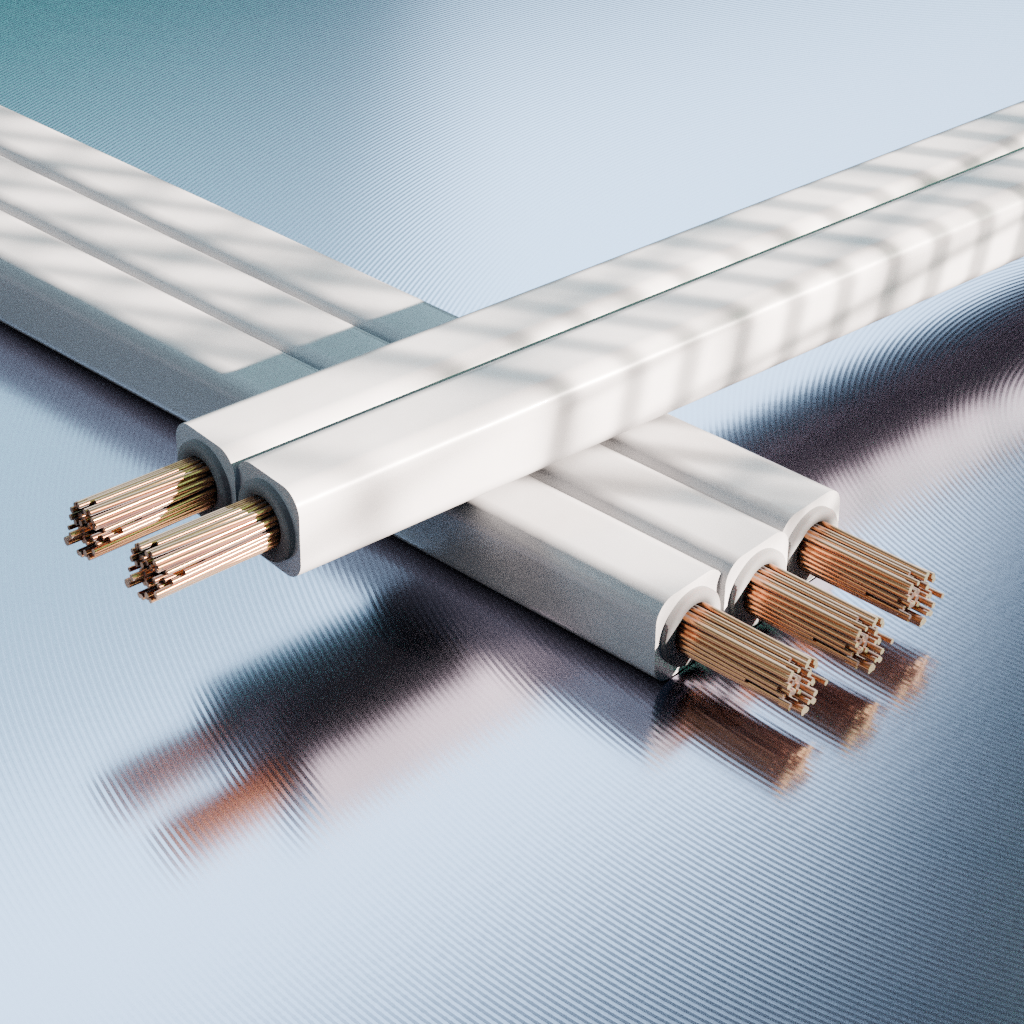

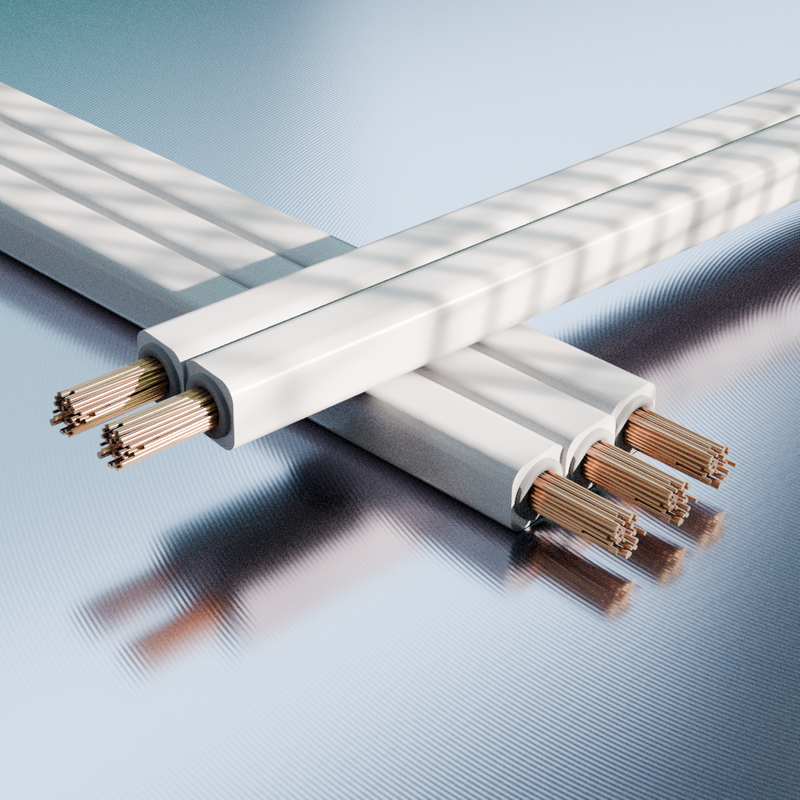

UL Electric Wire SPT-1/2/3

Availability:
Quantity:
Inquire Add to Basket

SPT-1

UL/cUL Flexible Cord SPT-1

standard UL62/UL1581

  • Rated Voltage 300V

  • Rated Temperature 105℃

  • PVC Rated Temperature

  •  Standard thickness, easy to peel and cut


Gauge
AWG

(№ mm)

Stranding OD
(mm)


Cores

Insulation thickness
(mm)

Insulation OD
(mm)

Max resistance/bare
20℃(Ω/km)

Weight
(kg/km)

20
26×0.16
0.94
2
0.78
2.55×5.00
34.6
23
18
41×0.16
1.18
2
0.76
2.70×5.40
21.8
29

SPT-2

UL/cUL Flexible Cord

standard UL62/UL1581

  • Rated Voltage 300V

  • Rated Temperature 105℃

  • PVC Rated Temperature

  • Standard thickness, easy to peel and cut


Gauge
AWG

(№ mm)

Stranding OD
(mm)


Cores

Insulation thickness
(mm)

Insulation OD
(mm)

Max resistance/bare
20℃(Ω/km)

Weight
(kg/km)

18
41×0.16
1.18
2
1.21
3.50×6.95
21.8
43
16
26×0.254
1.49
2
1.61
3.80×7.50
13.7
54

SPT-3

UL/cUL Flexible Cord

standard CAN/CSA-22.2 No.21-95

  • Rated Voltage 300V

  • Rated Temperature 105℃

  • PVC Rated Temperature

  • Standard thickness, easy to peel and cut


Gauge
AWG

(№ mm)

Stranding OD
(mm)


Cores

Insulation thickness
(mm)

Insulation OD
(mm)

Max resistance/bare
20℃(Ω/km)

Weight
(kg/km)

18
41×0.16
1.18
2
1.52
4.25×8.4
21.8
56
16
65×0.16
1.49
2
1.52
4.5×9
13.7
68
14
41×0.254
1.88
2
2.03
6×11
8.62
118
12
65×0.254
2.37
2
2.41
7.2×12.7
5.42
173
10
104×0.254
2.99
2
2.79
8.8×14.6
3.41
264


Standard thickness easy to peel and cut Rated Voltage 300V Rated Temperature 105℃ PVC Rated Temperature Standard thickness easy to peel and cut
