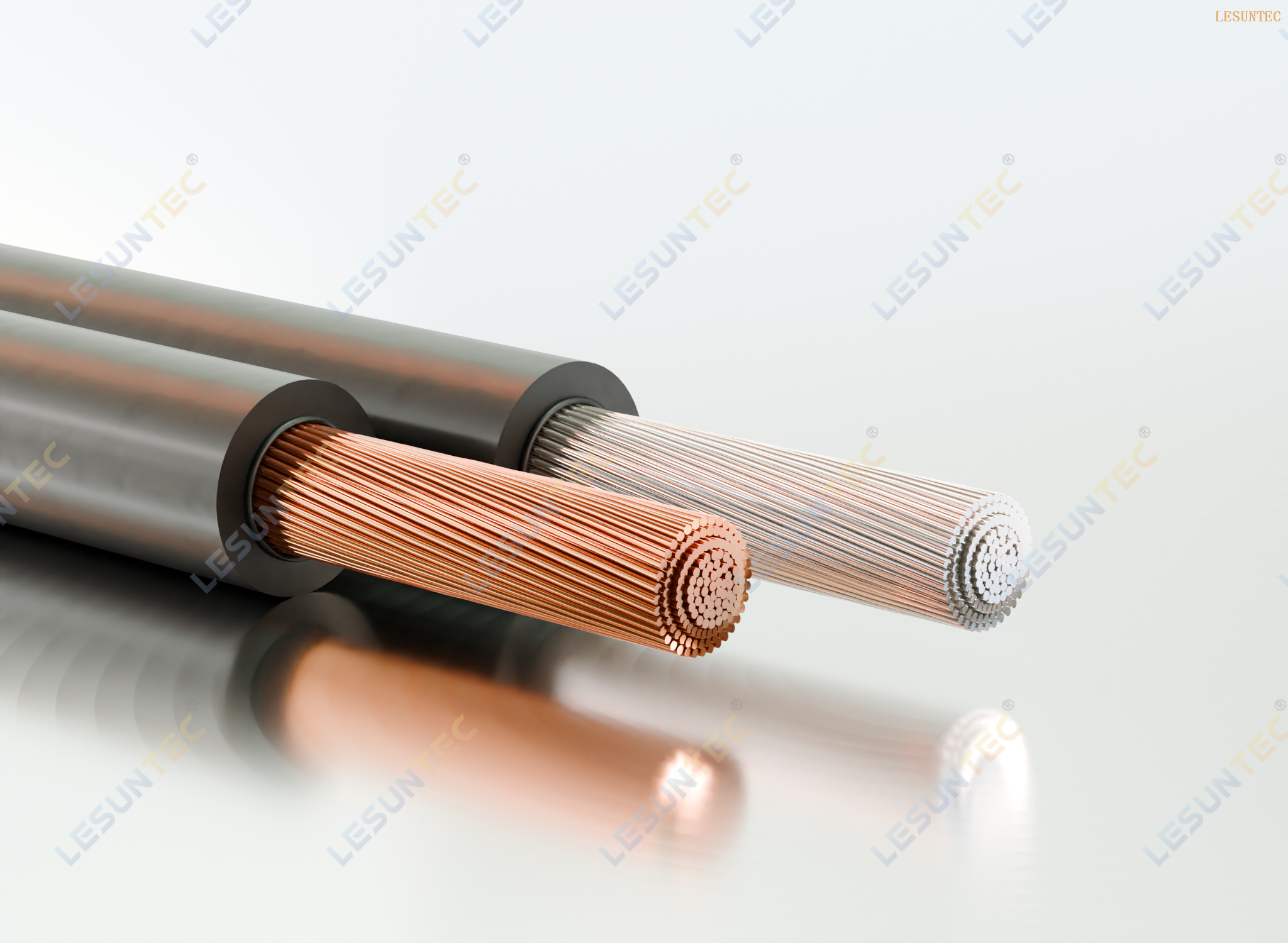

QVR-105
JB/T 8139-1999
Rated Voltage 60V
Rated Temperature 105℃
PVC Rated Temperature
Standard thickness, easy to peel and cut
Conductor section | (№ mm) | Stranding OD | Insulation thickness | Insulation OD | Max resistance/bare | Weight |
|---|---|---|---|---|---|---|
0.5f | 20×0.18 | 0.93 | 0.59 | 2.1 | 36.7 | 8.96 |
0.5 | 7×0.32 | 0.98 | 0.57 | 2.1 | 32.7 | 9.35 |
0.75 | 30×0.18 | 1.14 | 0.58 | 2.3 | 24.4 | 11.84 |
0.85 | 11×0.32 | 1.23 | 0.54 | 2.3 | 20.8 | 12.7 |
1.25 | 50×0.18 | 1.47 | 0.67 | 2.8 | 14.7 | 18.54 |
1.25 | 16×0.32 | 1.48 | 0.66 | 2.8 | 14.3 | 18.64 |
2 | 26×0.32 | 1.88 | 0.66 | 3.2 | 8.81 | 27.26 |
3 | 41×0.32 | 2.37 | 0.77 | 3.9 | 5.59 | 41.85 |
5 | 65×0.32 | 2.98 | 0.86 | 4.7 | 3.52 | 63.9 |
8 | 50×0.45 | 3.68 | 0.87 | 5.4 | 2.32 | 91.81 |
JB/T 8139-1999
Rated Voltage 60V
Rated Temperature 105℃
PVC Rated Temperature
Standard thickness, easy to peel and cut
Conductor section | (№ mm) | Stranding OD | Insulation thickness | Insulation OD | Max resistance/bare | Weight |
|---|---|---|---|---|---|---|
0.5f | 20×0.18 | 0.93 | 0.59 | 2.1 | 36.7 | 8.96 |
0.5 | 7×0.32 | 0.98 | 0.57 | 2.1 | 32.7 | 9.35 |
0.75 | 30×0.18 | 1.14 | 0.58 | 2.3 | 24.4 | 11.84 |
0.85 | 11×0.32 | 1.23 | 0.54 | 2.3 | 20.8 | 12.7 |
1.25 | 50×0.18 | 1.47 | 0.67 | 2.8 | 14.7 | 18.54 |
1.25 | 16×0.32 | 1.48 | 0.66 | 2.8 | 14.3 | 18.64 |
2 | 26×0.32 | 1.88 | 0.66 | 3.2 | 8.81 | 27.26 |
3 | 41×0.32 | 2.37 | 0.77 | 3.9 | 5.59 | 41.85 |
5 | 65×0.32 | 2.98 | 0.86 | 4.7 | 3.52 | 63.9 |
8 | 50×0.45 | 3.68 | 0.87 | 5.4 | 2.32 | 91.81 |
