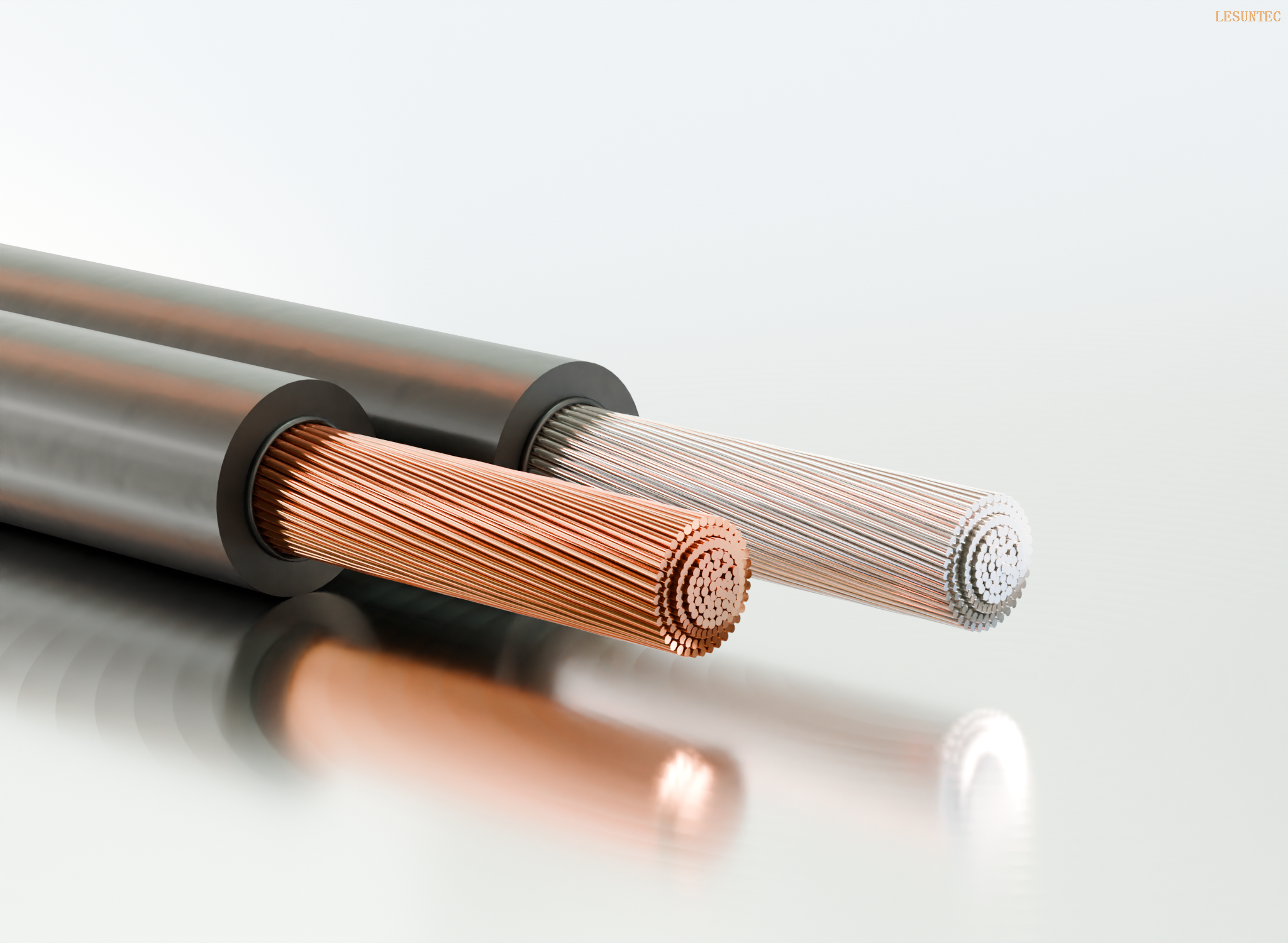

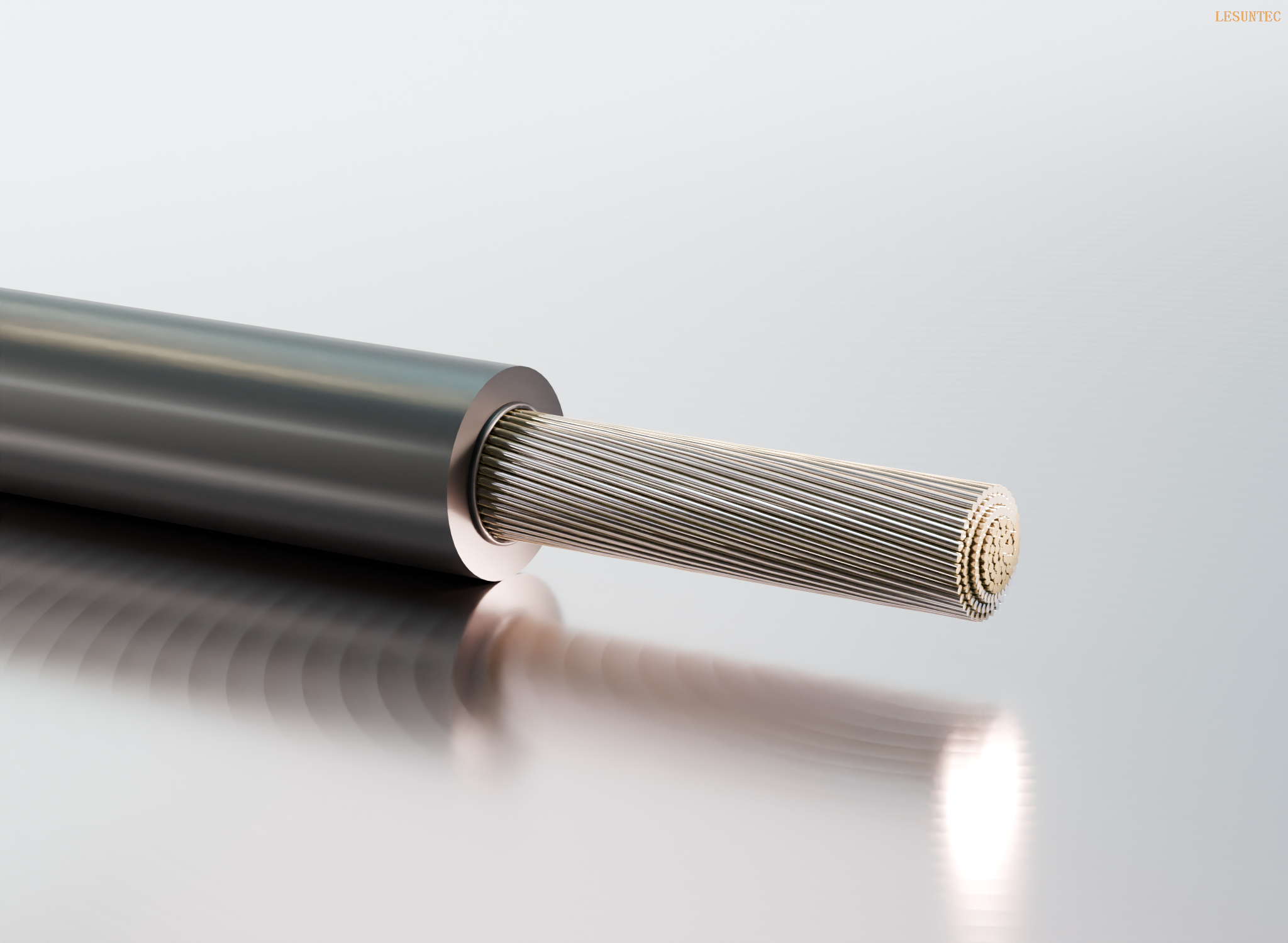

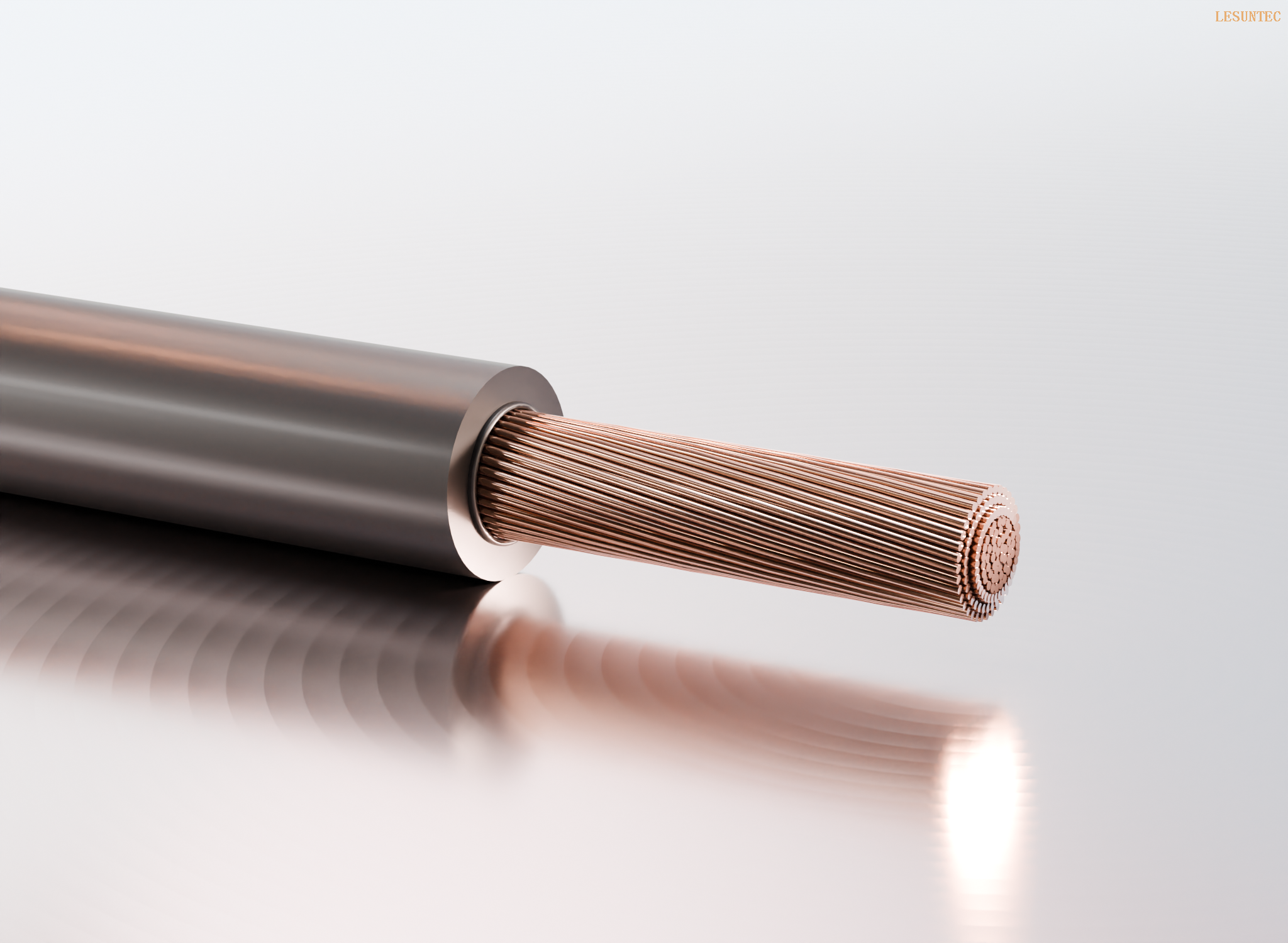

German Standard FRLY-A/B FLR9Y-A/B

Availability:
Quantity:
Inquire Add to Basket

  • FRLY-A/B FLR9Y-A/B

PVC Insulated Single-core cable

standard: ISO 6722 Class B


  • Rated Voltage 60V

  • Rated Temperature 105℃

  • PVC Rated Temperature

  • Standard thickness, easy to peel and cut

Flry-a


Conductor section
(mm²)

(№ mm)

Stranding OD
(mm)

Insulation thickness
(mm)

Insulation OD
(mm)

Max resistance/bare
20℃(Ω/km)

Weight
(kg/km)

0.22
7×0.21
0.64
0.2
1.2
84.8
3.47
0.35
7×0.26
0.79
0.2
1.3
52
4.69
0.5
19×0.19
0.96
0.22
1.6
37.1
6.93
0.75
19×0.23
1.16
0.24
1.9
24.7
9.98
1
19×0.26
1.31
0.24
2.1
18.5
12.51
1.5
19×0.32
1.61
0.24
2.4
12.7
17.83
2
19×0.37
1.86
0.24
2.6
9.42
22.7
2.5
19×0.41
2.06
0.28
3
7.6
28.72



Flry-b

Conductor section
(mm²)

(№ mm)

Stranding OD
(mm)

Insulation thickness
(mm)

Insulation OD
(mm)

Max resistance/bare
20℃(Ω/km)

Weight
(kg/km)

0.35
12×0.21
0.84
0.2
1.4
52
5.33
0.5
16×0.21
0.97
0.22
1.6
37.1
7.04
0.75
24×0.21
1.19
0.24
1.9
24.7
10.28
1
32×0.21
1.37
0.24
2.1
18.5
13.22
1.5
30×0.26
1.64
0.24
2.4
12.7
18.29
2
30×0.31
1.96
0.24
2.6
9.31
24.27
2.5
50×0.26
2.12
0.28
3
7.6
29.76
3
45×0.31
2.4
0.28
3.2
6.21
36.53
4
56×0.31
2.68
0.32
3.7
4.7
46.6
6
84×0.31
3.28
0.32
4.3
3.1
67.42
10
80×0.41
4.24
0.48
6
1.82
118.63
16
126×0.41
5.32
0.52
7.9
1.16
193.77
25
196×0.41
6.63
0.52
9.4
0.74
290.83


Flr9y-a

Conductor section
(mm²)

(№ mm)

Stranding OD
(mm)

Insulation thickness
(mm)

Insulation OD
(mm)

Max resistance/bare
20℃(Ω/km)

Weight
(kg/km)

0.22
7×0.21
0.64
0.2
1.2
86.5
3.47
0.35
7×0.26
0.79
0.2
1.3
55.5
4.69
0.5
19×0.19
0.96
0.22
1.6
38.2
6.93
0.75
19×0.23
1.16
0.24
1.9
25.4
9.98
1
19×0.26
1.31
0.24
2.1
19.1
12.51
1.5
19×0.32
1.61
0.24
2.4
13
17.83
2.5
19×0.41
2.06
0.28
3
7.82
28.72
4
37×0.38
2.67
0.32
3.7
4.92
46.39
6
37×0.45
3.16
0.32
4.3
3.23
64.19

Flr9y-b

Conductor section
(mm²)

(№ mm)

Stranding OD
(mm)

Insulation thickness
(mm)

Insulation OD
(mm)

Max resistance/bare
20℃(Ω/km)

Weight
(kg/km)

0.35
12×0.21
0.84
0.2
1.2
55.5
4.7
0.5
16×0.21
0.97
0.22
1.4
38.2
6.31
0.75
24×0.21
1.19
0.24
1.7
25.4
9.41
1
32×0.21
1.37
0.24
1.9
19.1
12.25
1.5
30×0.26
1.64
0.24
2.2
13
17.17
2.5
50×0.26
2.12
0.28
2.7
7.82
27.68
4
56×0.31
2.68
0.32
3.4
4.85
44.02
6
84×0.31
3.28
0.32
4
3.23
64.4
10
80×0.41
4.24
0.48
5.6
1.85
113


German Standard DIN Automotive Wire flry-a flry-b flr9y-a flr9y-b German Standard FRLY-A/B

Related Products

Freeze Dryer Wire Harness
Freeze Dryer Wire Harness
Car Cigarette Lighter Charging Cable
Car Cigarette Lighter Charging Cable

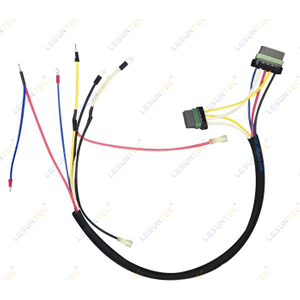

Floor Scrubber Wiring Harness
